27) Ohlins MX / GNCC Damper

OHLINS WHOLE DAMPER KITS NO LONGER AVAILABLE , Possible service options if in excellent condition.

Dampens Outward from Center (about 60′ degrees ) then Zero back to center ( very popular! )

Easily adjustable from free movement to any desired amount of damping.

(Adjustable “DL”– Damping Level and “RTC”– Return To Center damping level)

This Damper Mounts easily without purchasing Bar risers or triple clamps .

Once you use one you may never ride without one again, they are that nice.

Additional Mounts Kits Only can be purchased  separately to use on different brands.

1)

The Hex Nut shown (above) has Black Round Dust cap and that goes where the stem nut would be.

2)

Purchase a Damper Separate (Shown Left) and  a  Specific Mount Kit (Shown Right )

3)

Want to know what the difference is between a KTM SD534 and SD535 Newer Ktm Mount?

BAM! (See above!)

Below are the Ohlins PDf Mounting Instructions:

Mounting Instructions Ohlins_SD534

Mounting Instructions Ohlins_SD535

4)

Shown on KTM SX-F 2016 with Standard ktm Triple clamps and Bar mounts (rubber) all stock stuff and SD535.

Note: the extra (included with mount kit) darker oval dish thingy helps radius on damper.

5)

Above SD535 on 2016 KTM 500EXC

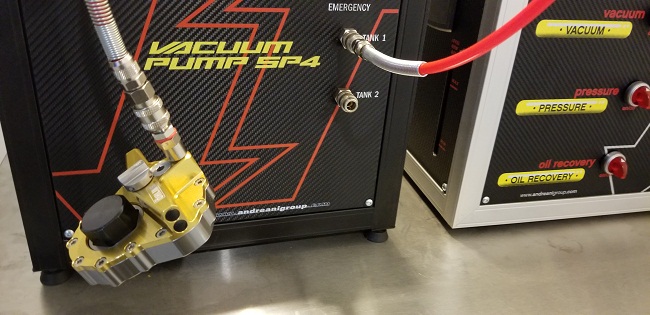

Factory Damper VAc MAchines are a Must when your damper is ready for a rebuild or Service.

Yes you will need proper tools, equipment, fluid when working on these dampers that have lots of little micro parts that perform well when correct.
